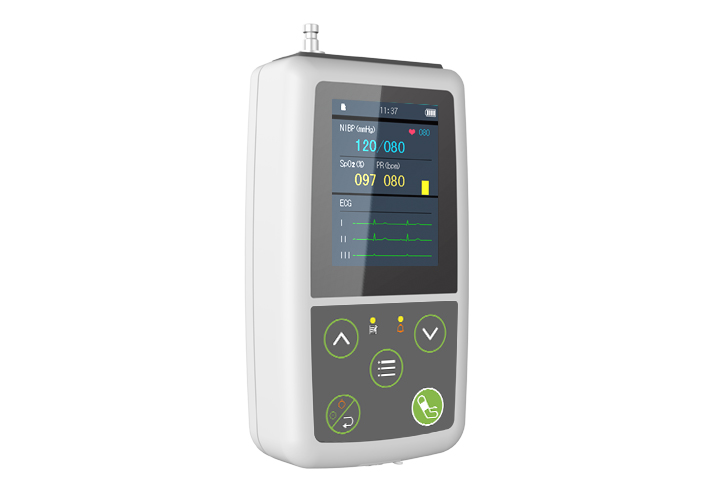

CB 100 Ambulatory Multi-parameter Recorder

Introduction

The device is applicable for adult for non-invasive monitoring of dynamic ECG, dynamic BP, SpO2 and PR.

It is suitable for use in hospitals and medical institutions, not for patient monitoring (no alarm function).

Function

Feature

USB high-speed transmission.

Sync collection of 12-lead ECG, BP and SpO2 (optional) data for 24 h at least.

Comprehensive analysis of ECG and BP.

ECG

Display and print ECG waveform at any time during collection.

Multi - lead overlay analysis, any lead can be selected for analyzing, more accurate to search QRS wave.

Histogram analysis function, interval, interval ratio, voltage, QRS width, QRS area and HR histogram can be selected for analyzing.

Scatter plot (including density and mixed scatter plot) analysis function.

Atrial fibrillation analysis function adopts the mode of combining time scatter plot and Lorenz scatter plot, intuitive to display the location of atrial fibrillation event, convenient to positioning for diagnosis.

With the functions of arrhythmia, bradycardia and ST-T analysis.

NIBP

With the functions of 24 h automatic cycling BP measurement and setting measurement interval.

BP data review and report print functions.

Measurement of systolic pressure, diastolic pressure and mean pressure.

SpO2

Measurement of SpO2 and PR.

SpO2 trend chart review and print functions.

Application fields

Applied in the field of dynamic ECG examination for collecting and storing patient’s physiological parameters (12-lead ECG, BP, SpO2 (optional), etc.) for 24-hour at least, analyze dynamic ECG and dynamic BP by the analysis software, realize the capture of paroxysmal and occult arrhythmia, diagnosis of ischemic heart disease and the evaluation of clinical effect of pacemakers, etc.
