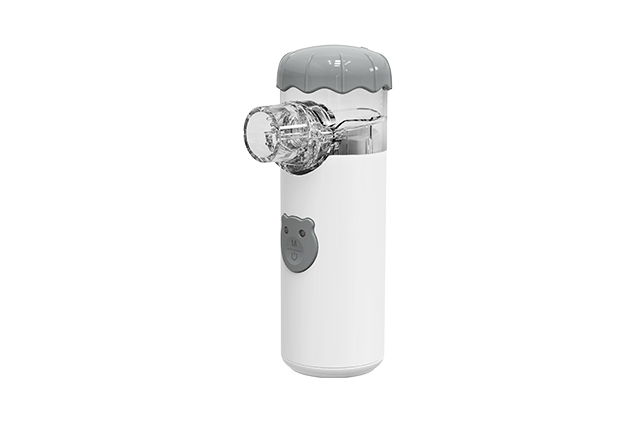

NE-M02 Mesh Nebulizer

Introduction

The device forms nebulizing effect by the following actions, the high-frequency vibration of piezoelectric ceramic piece leads to the deformation of micro plate, so that the liquid in contact with the micro plate is atomized. It is powered by a 5 V power adapter or a 3.7 V lithium battery, with the advantages of compact and portable design, easy to use, adjustable (two grades) and high in nebulization rate, which is applicable for use in hospital, clinic and family.

Function

One-button operation.

Liquid nebulization function.

Power indication function.

Low-battery indication function.

Automatic shutdown without liquid.

Adjustable nebulization rate.

Charging function.

Performance

Median particle diameter: 1-4 μm±25%

Equivalent volume particle diameter distribution: the proportion of particle diameter below 5 μm is not less than 60 %

Input power: < 15 VA

Nebulization rate:

Grade Ⅰ: ≥ 0.25 mL/min;

Grade Ⅱ: ≥ 0.15 mL/min

Cup capacity: 10 mL

Liquid volume: 2 ~ 10 mL

Residual volume: ≤ 0.3 mL

Noise: ≤ 50 dB (A)

Working frequency: 110 KHz ± 10 %

Power supply: DC 5 V or 3.7 V rechargeable lithium battery

Safety class: class Ⅱ equipment, type BF applied part

The degree of waterproof and dustproof: IP22

Mode of operation: continuous operation

Operating environment

Temperature: 5 ℃ ~ 40 ℃

Relative humidity: 15 % ~ 90 %

Atmospheric pressure: 700 hPa ~ 1060 hPa
