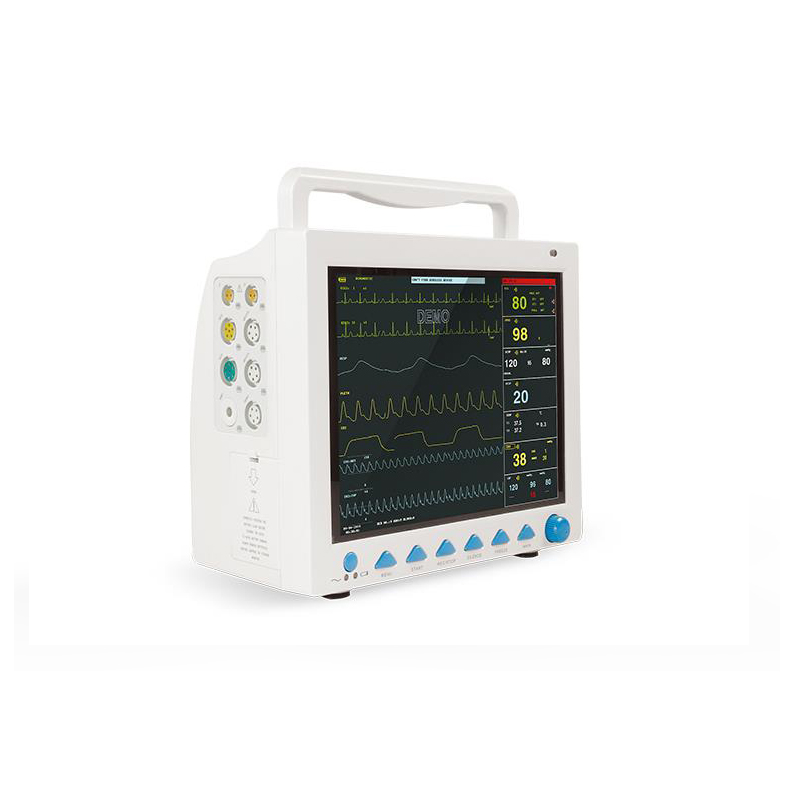

CMS8000

Introduction

The monitor has abundant functions that can be used for clinical monitoring with adult, pediatric and neonate. Users may select different parameter configuration according to different requirements. The monitor, power supplied by 100-240V~,50/60Hz, adopts 12.1'' color TFT LCD displaying real-time date and waveform. It can synchronously display eight-channel waveform and full monitoring parameters equipped with an optional 48mm thermal recorder. The monitor can be connected to the central monitoring system via wire or wireless network to form a network monitoring system.

This device can monitor such parameters as ECG, RESP, NIBP, SpO2, and dual-channel TEMP, etc. It integrates parameter measurement module, display and recorder in one device to form a compact and portable equipment. Its replaceable internal battery brings lot of convenient for patient moving.

Functions

Standard parameters: ECG, RESP, SpO2, PR, NIBP, dual-channel TEMP

1)                      ECG      Heart rate(HR)

                                      ECG waveform

                                      Arrhythmia and ST-segment analysis

2)                      RESP     Respiration rate(RR)

                                      Respiration waveform

3)                      SpO2    Oxygen saturation(SpO2)

                                      Plethysmogram(PLETH) waveform

                                      Pulse rate(PR)

                                      Bar graph

4)                      NIBP     Systolic pressure(SYS), Diastolic pressure(DIA), Mean pressure(MEAN)

5)                      TEMP     T1, T2, TD

6)                      IBP(optional)     CH1:SYS,DIA,MAP

                                                   CH2:SYS,DIA,MAP

                                                   IBP waveform

7)                      CO2(optional)                EtCO2

                                                                InsCO2:Inspired Minimum CO2

                                                                AwRR:Air Way Respiration

It has abundant functions, such as audible and visual alarm, trend data storage and output, NIBP measurement, alarm event marking and drug concentration calculation, etc.
